Laser cutting metal gears

Post by Eastblock »

Hi All

In about a months time I will receive a 1kW fiber laser for cutting metal. I hope to be able to cut functional gears on it. I know they will not be suitable for heavy duty use as the cut faces aren't perfectly straight on a laser. However I hope they will be good enough for light duty in Rolling Ball Sculptures.

Has anyone in the group ever cut metal gears on a laser or have had some cut?

Cheers,

Michael
BobL
Global Moderator
Global Moderator
Posts: 466
Joined: Sun Sep 05, 2010 7:18 am

Re: Laser cutting metal gears

Post by BobL »

Michael;

No metal gears for me, however they cut and work great on wood or plastic. I don't suspect you'll have any issues as long as the curf from the cut line has been taken into consideration. Good Luck and have fun.

Cheers
Bob
:)
Gearotic Motion
Bob
Dan Mauch
Old Timer
Posts: 117
Joined: Tue Oct 04, 2016 2:44 pm

Re: Laser cutting metal gears

Post by Dan Mauch »

How thick are the gears going to be? Something you might want to consider is two make two thinner gears with dowel pin holes. Then sandwich them together and secure with dowel pins.
Dan Mauch



Eastblock wrote: Hi All

In about a months time I will receive a 1kW fiber laser for cutting metal. I hope to be able to cut functional gears on it. I know they will not be suitable for heavy duty use as the cut faces aren't perfectly straight on a laser. However I hope they will be good enough for light duty in Rolling Ball Sculptures.

Has anyone in the group ever cut metal gears on a laser or have had some cut?

Cheers,

Michael
Eastblock
Old Timer
Posts: 22
Joined: Thu Dec 16, 2010 10:49 am

Re: Laser cutting metal gears

Post by Eastblock »

The gears will probably be in the 3-6mm range.

I've cut loads of wood and plastic gears on my CO2 lasers and they work fine in my marble machine kits where there is little load.
Eastblock
Old Timer
Posts: 22
Joined: Thu Dec 16, 2010 10:49 am

Re: Laser cutting metal gears

Post by Eastblock »

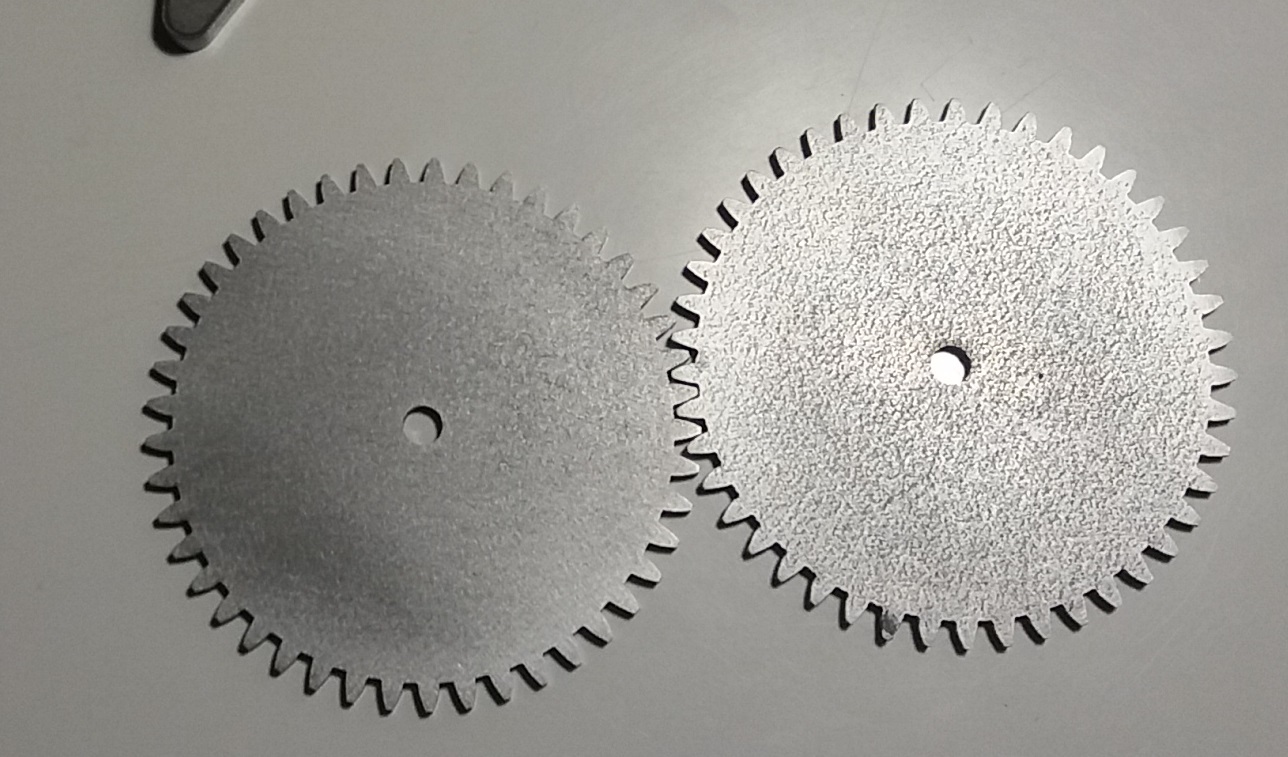

Just cut these mod2 gears on the fiber laser. 3mm carbon steel. Good enough for kinetic art pieces.
Attachments
MOD2 gears 3mm lasercut.jpg
User avatar
ArtF
Global Moderator
Global Moderator
Posts: 4586
Joined: Sun Sep 05, 2010 6:14 am
Contact:

Re: Laser cutting metal gears

Post by ArtF »

Hi :

Great job on those. I've never used a 1kw fiber.. how long did it take to cut?
The results look good.  3mm thick is pretty impressive really by laser.


Art
Eastblock
Old Timer
Posts: 22
Joined: Thu Dec 16, 2010 10:49 am

Re: Laser cutting metal gears

Post by Eastblock »

Didn't time it - probably less than a minute. 1kW is small stuff by todays standards. 6kW seems the norm with the big guys.

Here is one being cut in 1mm steel: https://www.instagram.com/p/BtfvrBshufk/
steve323
Old Timer
Posts: 36
Joined: Thu Nov 09, 2017 6:38 am

Re: Laser cutting metal gears

Post by steve323 »

Wow, the gears cut really fast and appear to have fairly smooth teeth.  Thanks for posting the video.

Steve
Eastblock
Old Timer
Posts: 22
Joined: Thu Dec 16, 2010 10:49 am

Re: Laser cutting metal gears

Post by Eastblock »

I can just about manage mod0.5 in thin materials. Once the width of the tooth goes below the thickness of the sheet, then burning starts to become an issue.
Dan Mauch
Old Timer
Posts: 117
Joined: Tue Oct 04, 2016 2:44 pm

Re: Laser cutting metal gears

Post by Dan Mauch »

Eastblock wrote: Just cut these mod2 gears on the fiber laser. 3mm carbon steel. Good enough for kinetic art pieces.
Really nice job. Can you give us the name of the fiber laser or better yet a link?
Dan
Eastblock
Old Timer
Posts: 22
Joined: Thu Dec 16, 2010 10:49 am

Re: Laser cutting metal gears

Post by Eastblock »

This machine is not on their website but it's basically a slightly smaller version of their 3015 machine.

https://www.cnclaserlm.com/Fiber-laser- ... 72933.html
Dan Mauch
Old Timer
Posts: 117
Joined: Tue Oct 04, 2016 2:44 pm

Re: Laser cutting metal gears

Post by Dan Mauch »

That is a really cool machine. You will be able to make some really cool kinetic art pieces with that.
Dan

Eastblock wrote: This machine is not on their website but it's basically a slightly smaller version of their 3015 machine.

https://www.cnclaserlm.com/Fiber-laser- ... 72933.html
User avatar
ArtF
Global Moderator
Global Moderator
Posts: 4586
Joined: Sun Sep 05, 2010 6:14 am
Contact:

Re: Laser cutting metal gears

Post by ArtF »

I agree, Im jealous, nice toy to play with...

Art
Eastblock
Old Timer
Posts: 22
Joined: Thu Dec 16, 2010 10:49 am

Re: Laser cutting metal gears

Post by Eastblock »

Dan Mauch wrote: That is a really cool machine. You will be able to make some really cool kinetic art pieces with that.
Dan
Thanks, I hope that will be the case. However I may end up being too busy with cutting jobs for customers that I will struggle to get some play time squeezed in.

I'd like to give the ticker mechanism a go at some point. I think it could made more compact if constructed from steel. Perhaps a kit would be of interest to this community?

I also have a CO2 laser for wood/plastic, just need a CNC lathe with C-axis and Y-axis and I'm all set (those are hideously expensive though!!)
Dan Mauch
Old Timer
Posts: 117
Joined: Tue Oct 04, 2016 2:44 pm

Re: Laser cutting metal gears

Post by Dan Mauch »


I'm not sure i understand about your lathe as most lathe use the X axis as the cross slide and the Z axis as the carriage. On a lathe the C axis is parallel to the Z axis so that is why I am confused.

Dan Mauch

Eastblock wrote:
Dan Mauch wrote: That is a really cool machine. You will be able to make some really cool kinetic art pieces with that.
Dan
Thanks, I hope that will be the case. However I may end up being too busy with cutting jobs for customers that I will struggle to get some play time squeezed in.

I'd like to give the ticker mechanism a go at some point. I think it could made more compact if constructed from steel. Perhaps a kit would be of interest to this community?

I also have a CO2 laser for wood/plastic, just need a CNC lathe with C-axis and Y-axis and I'm all set (those are hideously expensive though!!)
